KAS-HRSD400 Catalog
  • KAS-HRSD400

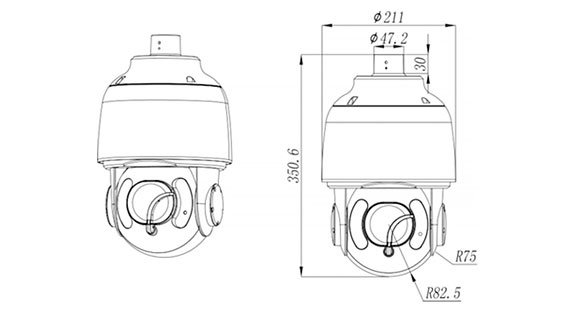

  • KAS-HRSD400 도면

1/1.9" 초저조도, 200만화소, 36배, 와이퍼기능, 저소음팬틸트 기능

주요사양
주요사양
카메라 Image Device 1/1.8” 2MSonyCMOS
Effective Pixels 2.38 Mega pixels
Aspect Ratio HD: 16:9 SD: 4:3
Zoom X30Optical Zoom / X12Digital Zoom
Focal Length f = 6.0~ 180.0 mm, F1.5~ F4.3
Horizontal angle 61.2°(W) ~2.32°(T)
MIN. Illuminance Color: (IR OFF)0.005Lux(F2) (IR ON) 0 Lux B/W: 0.0005Lux(F2)
Day & Night Auto / Day / Night (ICR)
Focus Full Auto(Near Limit setting)/ Semi Auto/ Manual
DNR 2D/3D, Level Adjustment(1~5)
Shutter Speed 1/30 ~ 1/60,000 sec (12Steps)
AGC Auto / MANUAL / MAX Gain Limit
White Balance AUTO/ATW/Manual/Indoor/Outdoor/One-Push/ Sodium VaporLamp(fix/auto)
WDR AUTO / MANUAL /BLC
  POWER UP ACTION, Defog, Home Position Setting, Parking Action, Wiper, 위치값제어를 위한 EncorderMotor 사용
팬/틸트 Range Pan : 360°(Endless)
Tilt : -10° ~ 180°(Flip)
Pan/Tilt Speed Preset : 240°/ sec
Manual : 0.05°~180°/sec (Zoom Proportional)
Scan : 1.4°~ 150°/ sec
Preset 255Presets with Labels
Group 255Groups
Privacy Zone Spherical Privacy Zone Masking
Sound noise Under Max. 32.5dB(저소음)
일반 Sensor In/Out Built-in 1 Input / 1 Output(Relay)
Video Out BNC: VBS 1.0 Vp-p
Infrared IR Distance: 0m~300m, Wave: 850nm
Power AC 24V / PoE, 23W
Approvals KC, IP67, RoHS
Housing Vandal Proof Structure / Color: White
Material Body: Aluminum Die-casting
Dimension Net (H): Ø210x 333 (H) mm
Weight Net: 4.8 Kg, Package: 8.0 Kg
Operating Temp -40°C ~ 60°C
Humidity 100%Suitable for Use
네트워크 OS Embedded Linux
Video Compression H.265/H.264/MJPEG
Video Streaming Multi Streaming CBR/VBR (Controllable frame rate and Bandwidth)
Frame Rate Max. 30 fps for 1080p/720p/D1/CIF/QCIF
Resolution All Codec:1080p,720p,D1,CIF MJPEG : QCIF
Audio Compression Two way, G.711 PCM. μ-law 64kbps 16kHz
Local Storage SDHC memory card (Card is not included)
Motion detection Notification: FTP, e-mail, Alarm out, JPEG Recording on SD
Alarm Pre-Pos Alarm
Max No. of Clients 10
Protocols Support IPv4 ONVIF, TCP/IP, UDP/IP, RTP(UDP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP
IPv6 TCP/IP, HTTP, HTTPS, DHCP
DDNS PubblicDDNS services Suport: www.dyndns.com, www.no-ip.com
Security HTTPS(SSL), Digest Authentication(ID/PW)
OS Supported Windows 10/7, Vista, XP, 2000
