KAS-H2012VAIR Catalog
  • KAS-H2012VAIR

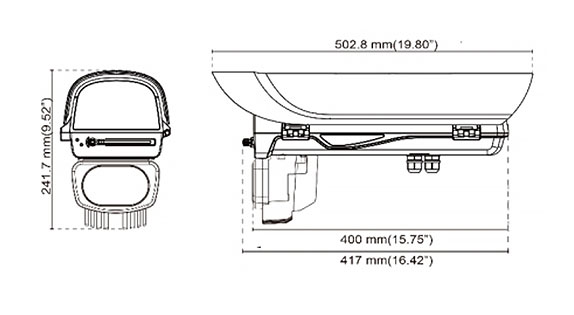

  • KAS-H2012VAIR 도면

1/1.9" 200만 초저조도, 12배전동줌, IR LED 48W, 차량식별

주요사양
주요사양
카메라 Image Device 1/1.9“ Progressive Scan CMOS
Effective Pixels Approx. 2.38 Mega pixels
Aspect Ratio HD: 16:9 SD: 4:3
Zoom Ratio Optical x12, Digital x12
Focal Length f = 7.0 ~ 84.0mm, F1.5 ~ F1.9
Horizontal angle 51.1°(W) ~ 5°(T)
MIN. Illumination COLOR : 0.005 Lux@F1.5 B/W : 0.0005 Lux@F1.5, 0 Lux (IR)
Day & Night Auto(CDS/CAM) / Day / Night(ICR)
Focus Auto/Manual
DNR(2D/3D) OFF/Level Adjustment(1~5)
Shutter Speed 1 sec ~ 1/10,000sec(60/30 mode) 1 sec ~ 1/10,000sec(50/25 mode)
AGC Auto/Manual
White Balance Auto/Indoor/Outdoor/Manual
WDR/BLC OFF/BLC/WDR(Digital)
Other Function Defog(Digital), HLC, Dynamic slow shutter
일반 Sensor In /Out Built-in 1 Input / 1 Output(Relay)
Audio In / Out 1 Audio In / 1 Audio Out
Video Out BNC: VBS 1.0 Vp-p
IR distance More than 350M , Control IR Angle Wave: 850nm, Power : 48W
Power AC24V 110W
Approvals* IK10, KC, IP66
Housing Weather proof / Vandal Proof Structure
Material Body : Aluminum Die-casting
Dimension Net: 417 x 241 mm
Weight Net: 3.9Kg, Package: 4.5Kg
Operating Temp. -40°C ~ 50°C
네트워크 Ethernet 10Base-T/100Base-Tx
Video Compression H.265/H.264/MJPEG
Video Stream Main 1080p/720p
Second D1/CIF/QCIF
Third 1080p/720p/D1/CIF/QCIF
Stream Type Video/Complex(Video/Audio) Stream
Frame Rate Max. 30 /25 fps for 1080P/720P/D1/CIF/QCIF
Bitrate 30Kbps ~ 16Mbps. Supports CBR/VBR/FIX QP
Audio Compression Two way, G.711 A-law, G.711 μ-law, 128kbps, sampling rate 8kHz
Local Storage Micro SD/SDHC/SDXC card. Support up to 128GB
IVA Motion Detection, Occlusion Detection, Line Crossing*, Region entrance/exiting*, Intrusion*, Tampering*, etc
Alarm actions Email, Micro SD/SDCH/SDXC Record, Relay Output, Snapshot, Notification of Client
Alarm Pre-Post Alarm
Max No. of Clients 10 users(Depending on user bandwidth)
Web Brower IE 6.0 above
Protocols Support IPv4 IPv4/IPv6*, TCP/IP, UDP, RTP, RTSP, RTMP, NTP, HTTP, HTTPS*, SSL*, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMP*
DDNS Pubblic DDNS services Suport: www.dyndns.com
ONVIF PROFILE S
Security User Authentication(ID/PW), IP Address/Mac Address filtering*
