KAS-IRS-P3600 Catalog PDF
주요사양
| 카메라 | Image Device | 1/1.9“ Progressive Scan CMOS | |
|---|---|---|---|
| Effective Pixels | Approx. 2.38 Mega pixels | ||
| Aspect Ratio | HD: 16:9 SD: 4:3 | ||
| Zoom Ratio | Optical x36, Digital x12 | ||
| Focal Length | f = 5.8 ~ 210mm, F1.4 ~ F4.5 | ||
| Horizontal angle | 72.7°(W) ~ 1.8°(T) | ||
| MIN. Illuminance | COLOR : 0.05 Lux@F1.5 B/W : 0.001 Lux@F1.5, 0 Lux (IR LED On) | ||
| Day & Night | Auto(CDS/CAM) / Day / Night(ICR) | ||
| Focus | Auto/Semi Auto/Manual | ||
| DNR(2D/3D) | OFF/Level Adjustment(1~5) | ||
| Shutter Speed | 1sec ~ 1/10,000 sec (60/30 mode) 1sec ~ 1/10,000 sec (50/25 mode) |
||
| AGC | Auto / MANUAL | ||
| White Balance | Auto/Indoor/Outdoor/Manual | ||
| WDR/BLC | OFF/BLC/WDR(Digital) | ||
| Other Functions | Defog(Digital), HLC, Dynamic slow shutter | ||
| 팬/틸트 | Range | Pan: 360° (Endless) Tilt : -10° ~ 180° (Flip) | |
| Speed | Preset: 240°/sec Manual: 0.05° ~ 180°/sec Scan: 1.4 ̊~150 ̊/sec | ||
| Preset | 255 Presets with Labels | ||
| Group | 8 groups(Max. 16 presets) | ||
| 일반 | Sensor In/Out | Built-in 1 Input / 1 Output(Relay) | |
| Audio In / Out | 1 Audio In / 1 Audio Out | ||
| Video Out | BNC: VBS 1.0 Vp-p | ||
| IR distance | More than 300M, Wave: 850nm (with adaptive synchronized with zoom ratio) | ||
| Power | AC24V 36W | ||
| Approvals | KC, IP66 | ||
| Housing | Weather proof / Vandal Proof Structure | ||
| Material | Body : Aluminum Die-casting | ||

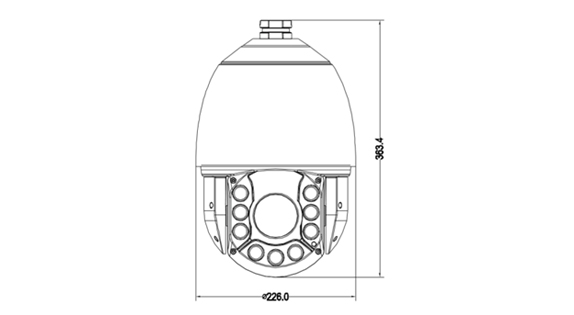

| Dimension | Net: Ø226 x 363.3(H) mm | ||
| Weight | 5Kg(approx) | ||
| Operating Temp | -30°C ~ 50°C | ||
| 네트워크 | Ethernet | 10Base-T/100Base-Tx | |
| Video Compression | H.265/H.264/MJPEG | ||
| VideoStream | Main | 1080p/720p | |
| Second | D1/CIF/QCIF | ||
| Third | 1080p/720p/D1/CIF/QCIF | ||
| Stream Type | Video/Complex(Video/Audio) Stream | ||
| Frame Rate | Max. 30 /25 fps for 1080P/720P/D1/CIF/QCIF | ||
| Bitrate | 30Kbps ~ 16Mbps. Supports CBR/VBR/FIX QP | ||
| Audio Compression | Two way, G.711 A-law, G.711 μ-law, 128kbps, sampling rate 8kHz | ||
| Local Storage | Micro SD/SDHC/SDXC card. Support up to 128GB | ||
| IVA | Motion Detection, Occlusion Detection, Line Crossing*, Region entrance/exiting*, Intrusion*, Tampering*, etc | ||
| Alarm actions | Email, Micro SD/SDCH/SDXC Record, Relay Output, Snapshot, Notification of Client | ||
| Alarm | Pre-Post Alarm | ||
| Max No. of Clients | 10 users(Depending on user bandwidth) | ||
| Web Brower | IE 6.0 above | ||
| Protocols Support | IPv4 | IPv4/IPv6*, TCP/IP, UDP, RTP, RTSP, RTMP, NTP, HTTP, HTTPS*, SSL*, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMP* | |
| DDNS | Pubblic DDNS services Suport: www.dyndns.com | ||
| ONVIF | PROFILES | ||
| Security | User Authentication(ID/PW), IP Address/Mac Address filtering* | ||
